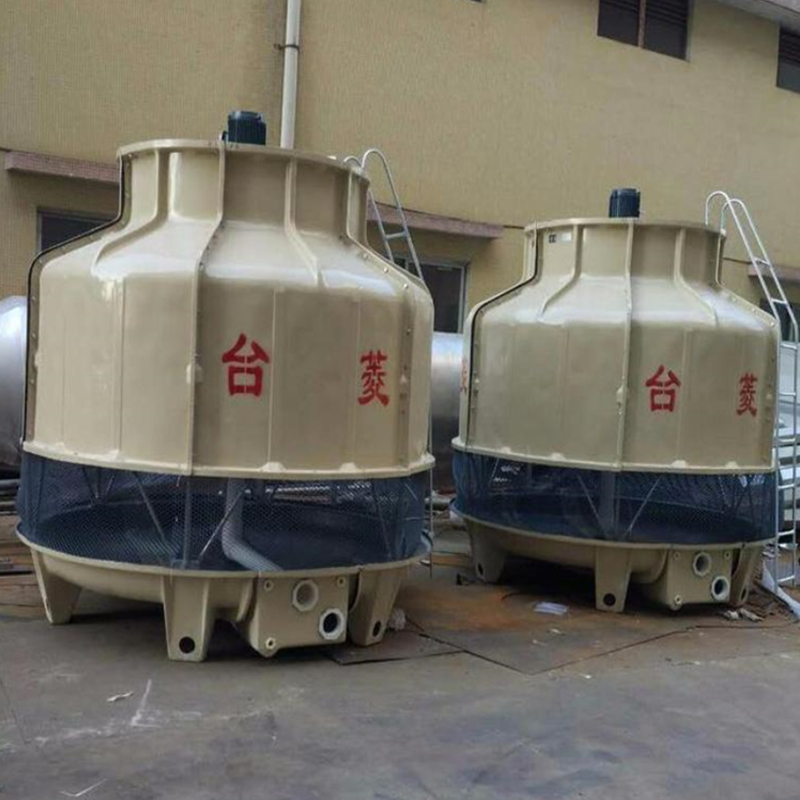

Product description of cooling tower:

Shell body and water tray: The cooling tower shell body and water tray are made of glass fiber reinforced plastic materials, which will not be corroded, do not need paint, are durable and reduce maintenance costs.

Heat-dissipating film: It is made of high-stability and hard-resistant polyvinyl chloride sheet. The temperature of incoming water can reach 54 degrees Celsius. The special structure of the film makes the maximum area of the cooling water contact with the film and the air resistance to be minimized, and the heat exchange energy is high. All cooling towers are guaranteed for one year under normal operation.

Scope of application: air conditioning cooling system, plastic industry system, chemical system, food processing, electroplating industry, generator set, etc.

Features of this model:

1. All fan angles are adjustable axial flow, made of high-grade engineering plastics, and strictly balanced and positioned in front of the factory.

2. All motors are fully enclosed and can be used in harsh climate environments.

3. The cooling tower shell and water tray are made of glass fiber reinforced plastic materials, which will not be corroded, do not need paint, are durable and reduce maintenance costs.

4. It is made of high-temperature resistant rigid PVC sheet. The water inlet temperature can reach 54 ℃. The special structure of the film makes the maximum area of cooling water contact with the film and the air resistance minimized, and the heat exchange energy is high.

The parameters of LT-100T counter-flow cooling tower are as follows:

Chassis diameter: 2250MM

Fan diameter: 1450MM

Tower height: 2700MM

Motor power: 2.2KW / 380V / 50HZ

Water flow: 78.12M3 / H

The advantages are as follows: 1. Reliable operation, durability and easy assembly; 2. Large capacity of collecting hopper, equipped with manual and automatic water replenishment devices and sewage and overflow pipes, no need to design a separate pool; 3. Light weight, low wind resistance and stability Good performance; 4. The tower body has good stability and strength, and can withstand earthquake cracks of 8 and 12 typhoons.

Tailing cooling tower is mainly used in air conditioning cooling system, freezing series, injection molding, leather making, foaming, power generation, steam turbine, aluminum profile processing, air compressor, industrial water cooling, etc. The most widely used are air conditioning cooling, freezing, plastic Chemical Industry. The specific division is as follows:

A. Air temperature adjustment category: air conditioning equipment, cold storage, cold storage room, freezing, heating and cooling air conditioning, etc .;

B. Manufacturing and processing: food industry, pharmaceutical industry, metal casting, plastic industry, rubber industry, textile industry, steel plant, chemical industry, petrochemical products, etc .;

C. Mechanical operation cooling type: generator, steam turbine, air compressor, hydraulic machine, engine, etc .;

D. Other industries ...
